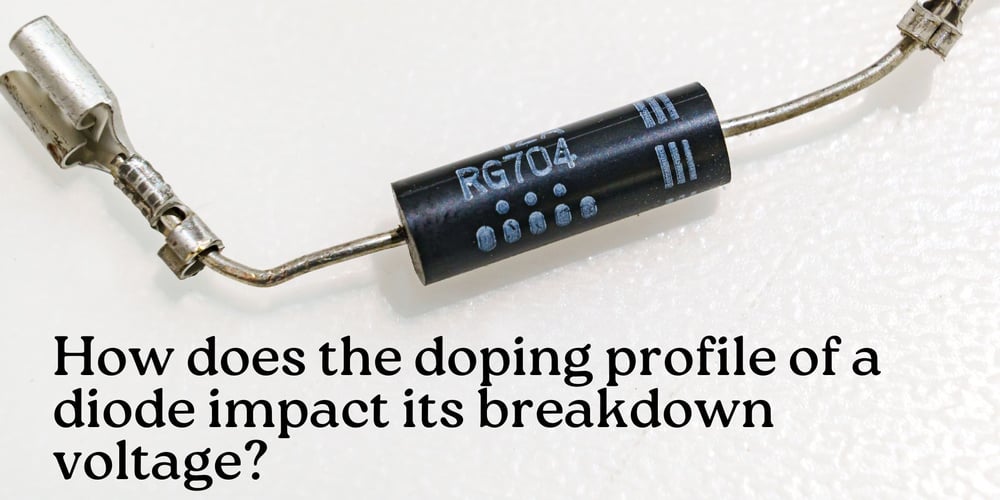

How does the doping profile of a diode impact its breakdown voltage?

One critical aspect of a diode’s design is its doping profile, which plays a crucial role in determining its breakdown voltage.

Doping refers to the intentional introduction of impurities into a semiconductor material to alter its electrical properties. In the case of diodes, doping is used to create regions with different concentrations of charge carriers (electrons and holes), which are essential for the diode’s operation.

The doping profile of a diode refers to the distribution of dopants within the semiconductor material. This distribution affects the electric field within the diode, which, in turn, impacts its breakdown voltage.

A diode’s breakdown voltage is the voltage at which it begins to conduct heavily in the reverse direction. This breakdown is typically caused by the avalanche effect or the Zener effect, depending on the diode’s construction and doping profile.

In an avalanche breakdown, high-energy carriers (electrons or holes) gain enough kinetic energy to ionize other atoms, creating electron-hole pairs. This process creates a rapidly increasing current flow and can lead to device failure if not properly controlled.

The doping profile influences the electric field distribution within the diode. A gradual change in doping concentration, such as in a lightly doped drift region, can help distribute the electric field more evenly, reducing the likelihood of localized high fields that can lead to avalanche breakdown.

On the other hand, a sharp change in doping concentration, such as in a heavily doped junction region, can lead to a more abrupt increase in the electric field, making the diode more susceptible to avalanche breakdown at lower voltages.
